VPN Label Propagation - MPLS - Cisco Certified Expert Every MP-BGP update thus carries a label assigned by the egress PE router together with the 96-bit VPNv4 prefix. Step 1: A VPN label is assigned to every VPN route by the egress PE router. Step 2: The VPN label is advertised to all other PE routers in an MP-BGP update. Step 3: A label stack is built in the VFR table. What is MPLS? | NordVPN MPLS, or multiprotocol label switching, is a network technology typically used by enterprises to connect their remote sites or by ISPs for layer 2/layer 3 traffic segmentation within different tenants. It's been around for more than 20 years, and many companies still rely on it. ... While MPLS vs. VPN search queries happen often on the ...

Maximum number of MPLS VPNs provided by a router? Number of MPLS labels (as you mentioned, roughly 220) Number of possible BGP Route Targets (248) Note 1 Note 1 Routes are marked for inclusion in a specific MPLS VPN by setting a Route Target on the route; route targets are 48-bits wide, which gives you up to 2**48 possible route-targets Share Improve this answer edited Oct 7, 2021 at 7:59

How many labels in mpls vpn

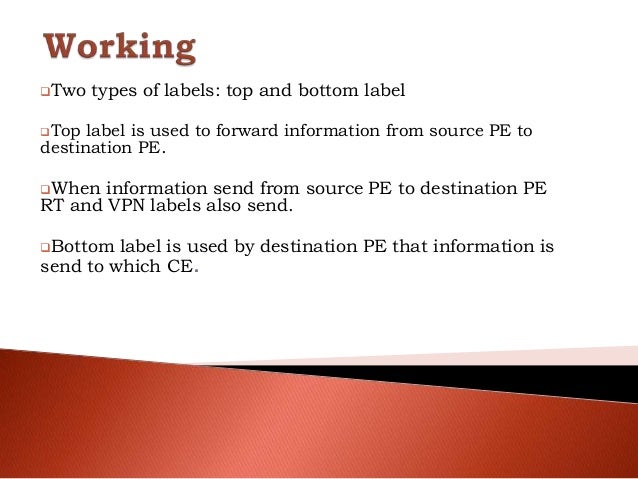

What is Multi-Protocol Label Switching or MPLS? - Comparitech MPLS is used to interlink the two and serves to speed up the transfer process. At its most basic, an MPLS network is connected to a cloud service that connects to every node within your network. Essentially, MPLS acts as a VPN. MPLS is either a point-to-point VPN, Layer 2 MPLS VPN, or Layer 3 MPLS VPN. What is Multiprotocol Label Switching (MPLS)? - VPNpro There are three sections in an MPLS circuit. They are: Local Loop Intermediate MPLS backbone. Most problems associated with the MPLS occur in the Local Loop part of the circuit. This is actually a piece of copper wire that connects the office building to the carrier's POP or Point of Presence. MPLS VPN Label - Cisco Community about how the label is distributed, for mpls vpn there is something called a label stack which means that the packet has a stack of at least 2 labels, the top label is the egress pe label (exchanged via ldp) while the other label is the vpn label (exchanged via mbgp). --> the logic implies that you need to reach the egress pe and further the …

How many labels in mpls vpn. MPLS VPNs > Multiprotocol Label Switching | Cisco Press The MPLS VPN data plane also requires more work and thought by the PE routers. The PE routers do not have any additional work to do, with one small exception, as compared with simple unicast IP routing. The extra work for the PE relates to the fact that the MPLS VPN data plane causes the ingress PE to place two labels on the packet, as follows: Introduction to MPLS and MPLS VPN technology The process of packet forwarding in an MPLS network can be broadly divided into 4 steps: Routers choose an MPLS label for every route on the network. For instance, routers R1, R2, R3 and R4 have labels 100, 200, 300 and 400 for the network 10.10.10.1/32, respectively. Note: The label field is 20 bits in length. Solved: MPLS VPN (Inner label) - Cisco Community The label is allocated by the egress PE to the vpnv4 prefix. LFIB is not involved. First the router (PE / Ingress-LSR) learns a prefix from the CE which ends up in the VRF RIB. Running MPLS the router allocates a local label for the prefix and stores it together with the next-hop and outgoing interface in the LFIB. What is MPLS ? How to implement MPLS? | MPLS - internetworks MPLS router 3 revives the labeled packet. router 3 swaps the label for a new label value (30) and then forward the packet to router 4. MPLS router receives the labeled packet, removes (pops) the label, and forwards the packet toward router 5; non-MPLS router 5 forward the unlabeled packet based on the destination IP address, as normal.

MPLS VPN Per VRF Label - Cisco The MPLS VPN Per VRF Label feature allows you to configure a single Virtual Private Network (VPN) label for all local routes in the entire VPN routing and forwarding (VRF) domain. This MPLS VPN Per VRF Label feature incorporates a single (per VRF) VPN label that for all local routes in the VRF table. MPLS VPN Labelling | VPN Label |Transport Label|Service Label ⋆ IPCisco There are two types MPLS Labels that are used in MPLS VPN Services. These MPLS Labels are: Transport Label (Outher Label) Service Label (Inner Label) Transport Label is the Label that is swapped in the Service Provider MPLS network in each LSR. It is the main MPLS Label. Service Label is the Label, that is used to determine MPLS VPN Services. VPN Label in MPLS VPN L3 - Huawei Enterprise Support Community VPN labels are advertised by MP-BGP between PEs. A VPN label is a unique label allocated by a PE to each VPN route. The remote PE advertises the VPN label to the local PE through BGP. As shown in the following figure, after PE1 receives the VPN label advertised by PE2 to its VPN1, PE1 adds the VPN label of VPN1 when accessing CE2. Differences Between LDP and MP-BGP Distribution Labels in MPLS VPN ... MP-BGP can distribute labels for VPNv4 prefixes (RD+ipv4). Both share the same set of labels, and labels are distributed in per platform per label mode. The distributed LDP labels are the public network labels on an MPLS VPN, that is, outer labels which are used to guide the private network data (carried over VPNv4) recursion to PEs through LDP ...

Packet Flow in an MPLS VPN Environment - Cisco The label is used in the MPLS core to send frames from Farm to 125.2.2.2 on Medina. 40 is assigned to 11.5.5.5 by Medina. When a PE (Medina in this case) learns an IP prefix from a CE (Pound), the PE assigns a specific label to this route. The label depends on which VPN VRF the route has learned. MPLS Labels and Devices - NetworkLessons.com With MPLS it's possible to add more than one label, you'll see why in some of the MPLS VPN lessons. When this bit is set to one, it's the last MPLS header. When it's set to zero then there is one or more MPLS headers left. TTL: just like in the IP header, this is the time to live field. You can use this for traces in the MPLS network. Cisco Content Hub - MPLS VPN Per VRF Label Cisco IOS XE Release 2.2. The MPLS VPN Per VRF Label feature allows a user to configure a single VPN label for all local routes in the entire VPN routing and forwarding (VRF) domain. The feature incorporates a single (per VRF) VPN label for all local routes in the VRF table. In Cisco IOS Release 12.2 (18)SXF2, this feature was introduced. How many MPLS labels will be pushed in the MPLS BGP/IP VPN How many MPLS labels will be pushed in the MPLS BGP/IP VPN user_3445655 Created: Aug 25, 2019 14:50:43 Latest reply: Jun 3, 2020 20:00:30 507 2 0 0 0 Rewarded HiCoins： 0 (problem resolved)

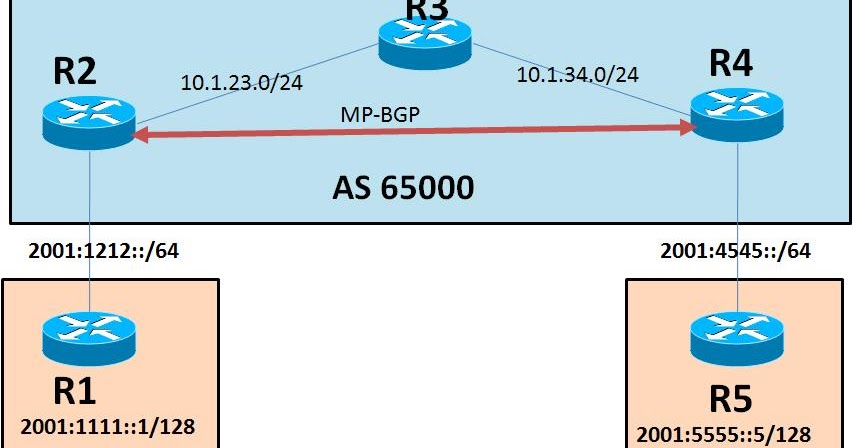

MPLS VPN Routing Example

MPLS VPN Label - Cisco Community about how the label is distributed, for mpls vpn there is something called a label stack which means that the packet has a stack of at least 2 labels, the top label is the egress pe label (exchanged via ldp) while the other label is the vpn label (exchanged via mbgp). --> the logic implies that you need to reach the egress pe and further the …
